HJ75 Trakka Bushman

There is no denying this fact; I have a serious passion for vintage Toyota Land Cruisers.  I bought my first vintage Toyota Land Cruiser in 2003, a 1987 FJ60 Wagon and have owned vintage Land Cruisers ever since.  In my opinion, a vintage Land Cruiser exudes utility, simplicity, and reliability.  It is these three fundamental characteristics that appeal most to my emotions.

_K2A4959

In 2009 I purchased my third vintage Land Cruiser, a 1980 FJ40 in nearly mint condition.  After spending years off-roading in the New England area in FJ60’s, I realized the F40 was better suited for our narrow, tree-laden trails.   During the fair weather months, I would almost exclusively drive my FJ40.   I completely fell in love my FJ40, and was convinced it would be with me for years to come.  In fact, for a while I considered my FJ40 a potential heir loom item for my children!

JPR_151022-4481

Its funny how ones perspective on life can change after having a few kids, starting a new career, and building a house.  My once insatiable desire to find the most challenging trails to test my off-roading prowess shifted to a desire to explore new places off the beaten path and travel greater distances.  My FJ40 was ideal for difficult and challenging New England trails, but not well suited for long distance, multi day travel with children and dogs.  I found myself having dreadful thoughts of selling my beloved FJ40 and replacing it with another FJ60. These thoughts actually kept me up at night.

JPR_151027-4771

After months of emotional turmoil and a few visits to my Land Cruiser psychotherapist, I decided it was time to sell the FJ40 and replace it with a vehicle better suited for my current needs.  But did I want another FJ60?  That was the question constantly on my mind.  One winter evening in 2014, I came across an HJ75 for sale in the US and immediately knew that was going to be my next vehicle.  I absolutely loved the angular lines, the flat fenders, and unique rear sliding windows.  The search for the perfect 75 series Land Cruiser was on!

JPR_151027-4833

Toyota first released the 75 series Land Cruiser in 1985 in the Australian and African markets, and produced them through 1999.  They were built to be a workhorse vehicle for farmers and miners alike.  Based on their size, function, and reliability, it was also quite natural that over landers would be drawn to the platform as well.  The 75 series were offered in two configurations.  One option (as shown here) was the “troop carrier” configuration, which has two front doors, two rear doors, and seating for up to 11 people.  The other configuration offered was the “ute”, which is basically a single cab pickup.  Some of these “ute” style 75 series came with traditional pickup beds, while other came with flat utility style beds, or no beds at all.

JPR_151022-4445

The 75 series were mostly built with a straight six, direct injected diesel engine.  Between 1985 and 1991, most were configured with the 4.2L 2H diesel engine.  It boasted a modest 107hp but packed in 177lb-ft of torque.  In 1992 Toyota started offering the 75 series with the 1FZ-FE petrol engine, which boasted 212hp and 275lb-ft of torque.  In 1995 the 75 series received a completely redesigned diesel engine with added horsepower and torque.   My research revealed that most of the 75 series Land Cruisers were configured with a 5-speed transmission, full floating rear axles, and 4.11 differential gearing.  Additional options one could purchase were cable activated locking differentials, factory push bar, air conditioning, and even a second 90-liter auxiliary fuel tank.   The interiors of the 75 series Land Cruisers were very simpleton with basic gauges, mostly manual controls, and vinyl floor covers.   Today, these vehicles are commonly seen with over 500,000 kilometers on them and still running strong.

JPR_151027-4862

For many years, US based Land Cruiser enthusiast could only dream of owning a 75 series as they were never imported to the US.  However 2010 marked the first year where some of the oldest 75 series Land Cruisers were eligible for legal importation.  The US does eventually permit the importation of non-US spec vehicles, however they need to be at least 25 years old.  Now in 2016, we are starting to see the 75 series (and other 7X models) trickle into the US.

JPR_151022-4471

After a long six-month hunt, I purchased my HJ75 in the spring of 2015 from eBay of all places.  I had never in my life made a large scale purchase from eBay, and absolutely never purchased a vehicle sight unseen.   However, when this specific Land Cruiser came up on Ebay, I knew I had to take a leap of faith and go for it.  I had seen other HJ75 Troopies on eBay before, but never had I seen a Troopy with a Trakka camper top conversion.  I have now come to learn that the HJ75 Trakka conversions are even rare in the Australian market.

DSCF9422JPR_151022-4610

A quick history on Trakka: Dave Berry and his wife Sally started Trakka in 1973.  Dave had a passion for Kombi style campers, and used them as inspiration to build his first pop-top style camper.  In the 80’s, Trakka started building campers conversions on the Toyota Land Cruiser platform, specifically for traveling through the Outback of Australia.

Toyota troopy001

Late 1979 Trakka LandcruiserLandcruiser001

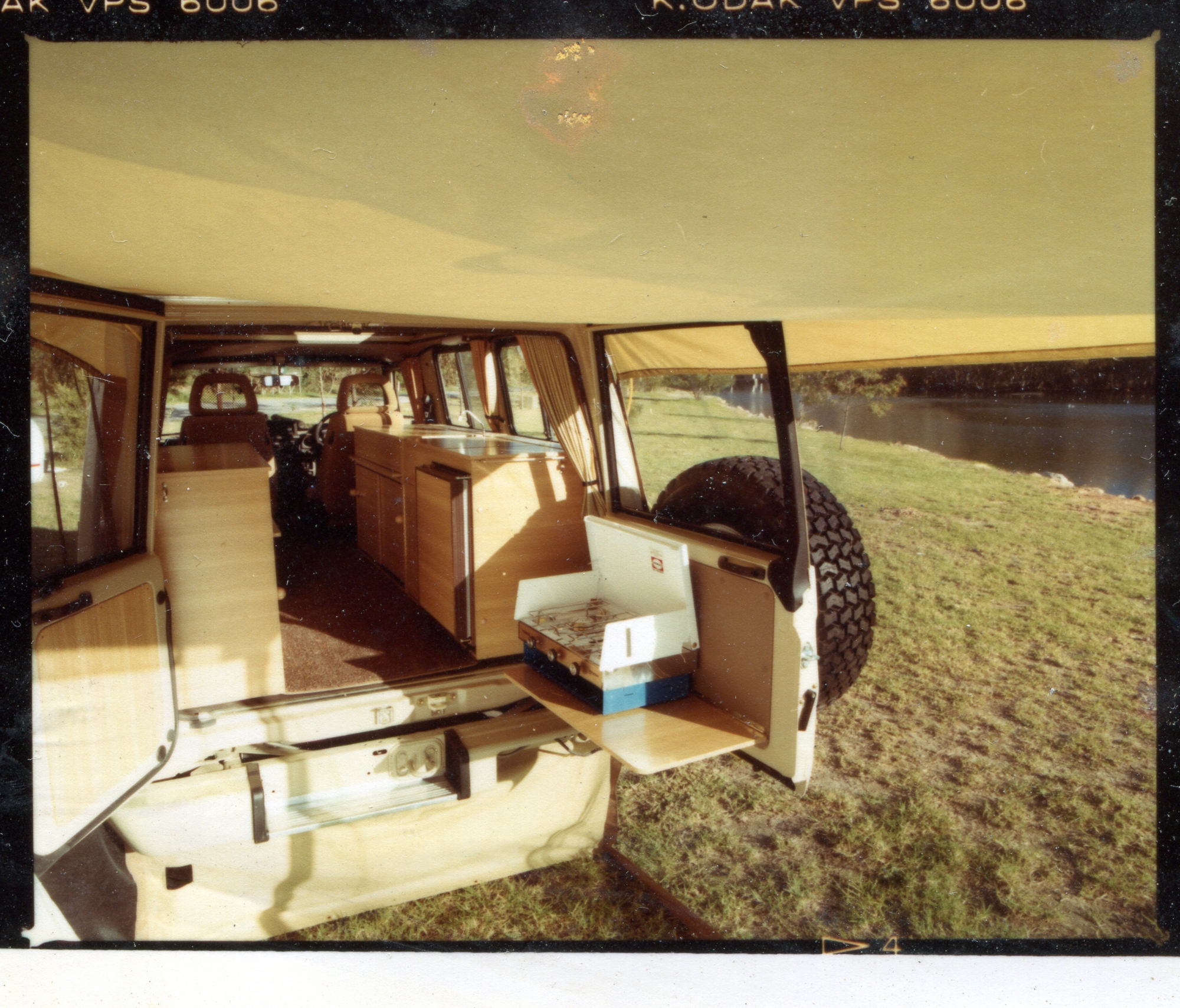

BushmanInt001

DSC02794DSC02786

1985 Bushman

In 1987, Dave and friend used an HJ75 Troopy, nearly identical to mine, to race in the famous Australian Safari from Sydney to Darwin.  Trakka still builds high-end camper conversions today, with their main focus on the Mercedes Sprinter, VW, and Fiat platforms.

JPR_151022-4556

JPR_151022-4570JPR_151027-4781

When I finally met the truck hauler here in Massachusetts one early morning in April, I felt like a kid on Christmas day. Upon first inspection, my Troopy was in better condition than I could have hoped.  The frame was perfect and straight, the paint (thought obviously not original) was in great condition, the fiberglass camper top was straight and crack free, and the interior was nearly perfect.  I was a truly a happy camper.

DSCF9381

For the next few weeks I drove my HJ75 daily so I could get acquainted with it, and work out all the little bugs I was certain to find.  My Troopy was in beautiful shape, but with nearly 450,000 kilometers I was prepared to encounter some mechanical issues at some point.  Sure enough, three weeks into owning my Troopy, it developed a rough idle.  I did the usual things that one might do to alleviate a rough idle in a diesel engine.  I changed the fuel filter, inspected all the injectors, and put new glow plugs in with no luck.  The next day the idle roughness continued to get worse, but now it was billowing white smoke from the tail pipe.  I knew right away this was a very bad sign.  After some further inspection and a trip to a mechanic friend in Vermont, we discovered the head gasket had blown and cracked the head in five places.  My Troopy spent the next three months sitting in his garage while we sourced parts.  We found an “new-old stock” factory Toyota head from a local outfitter in New Hampshire, sourced gaskets from Australia, and got it back on the road just in time for the long two thousand mile journey down to Overland Expo East.

DSCF9455

As of November 1st, I have put over 4,000 miles on it with almost no issue.  In fact, my daily driver, a 2007 Toyota Tacoma has pretty much sat in the driveway, as the Troopy is significantly more enjoyable to drive.  As most vehicles from Australia, my Troopy is right hand drive which ads another level of uniqueness and excitement.  I am constantly stopped and asked if driving from the right is difficult.  I have found driving from the right easy to become acquainted with, and frankly its fun to watch peoples reactions when I go through the drive through window in reverse!  The only issue I have found is passing on a single lane highway.  It helps if you have a passenger sitting on the left, but you must have strong faith in their judgment!

JPR_151022-4448



So here is a quick run down of how the HJ75 is set up currently:



-Factory Toyota 2H inline-six cylinder engine with an aftermarket ARB Turbo

-Factory H55 Five-speed transmission

-Factory second fuel tank

-Front/Rear Solid Axles with 4.11 Differential gearing

-Front/Rear ARB air locking differentials

-ARB Front Bull bar with a Ramsey 8,000lb electric winch

-51w Cree LED lights mounted to Bull Bar

-ARB side fender protection

-ARB side steps/rocker guards

-Old Man Emu 3” Heavy Duty Lift

-33×10.5 R15 BFG MT KO2 Tires

-Trakka camper top conversion with sleeping quarters

-Auxiliary fuel tank

-20 gallon fresh water tank with pump

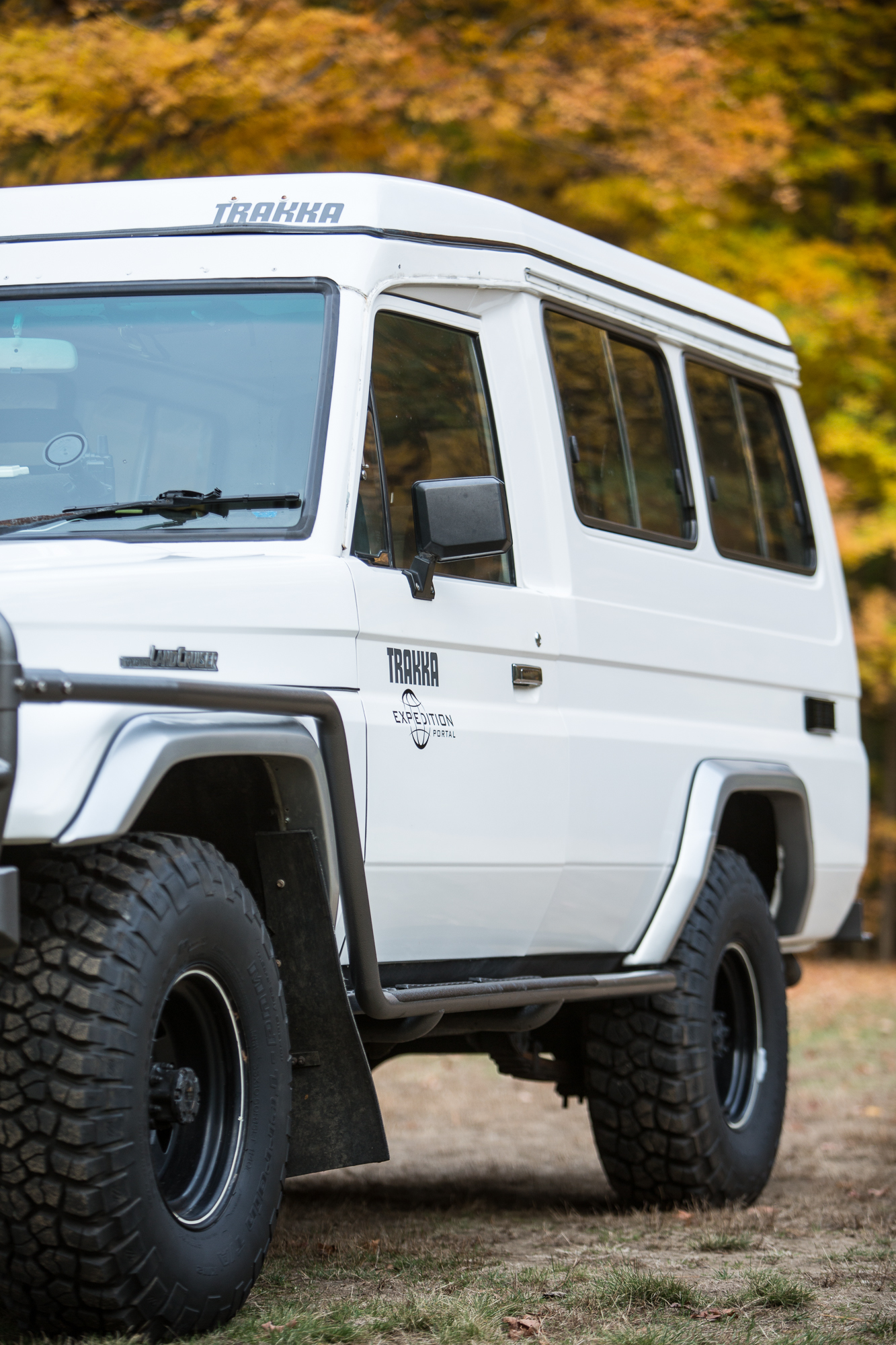

JPR_151027-4892JPR_151022-4513

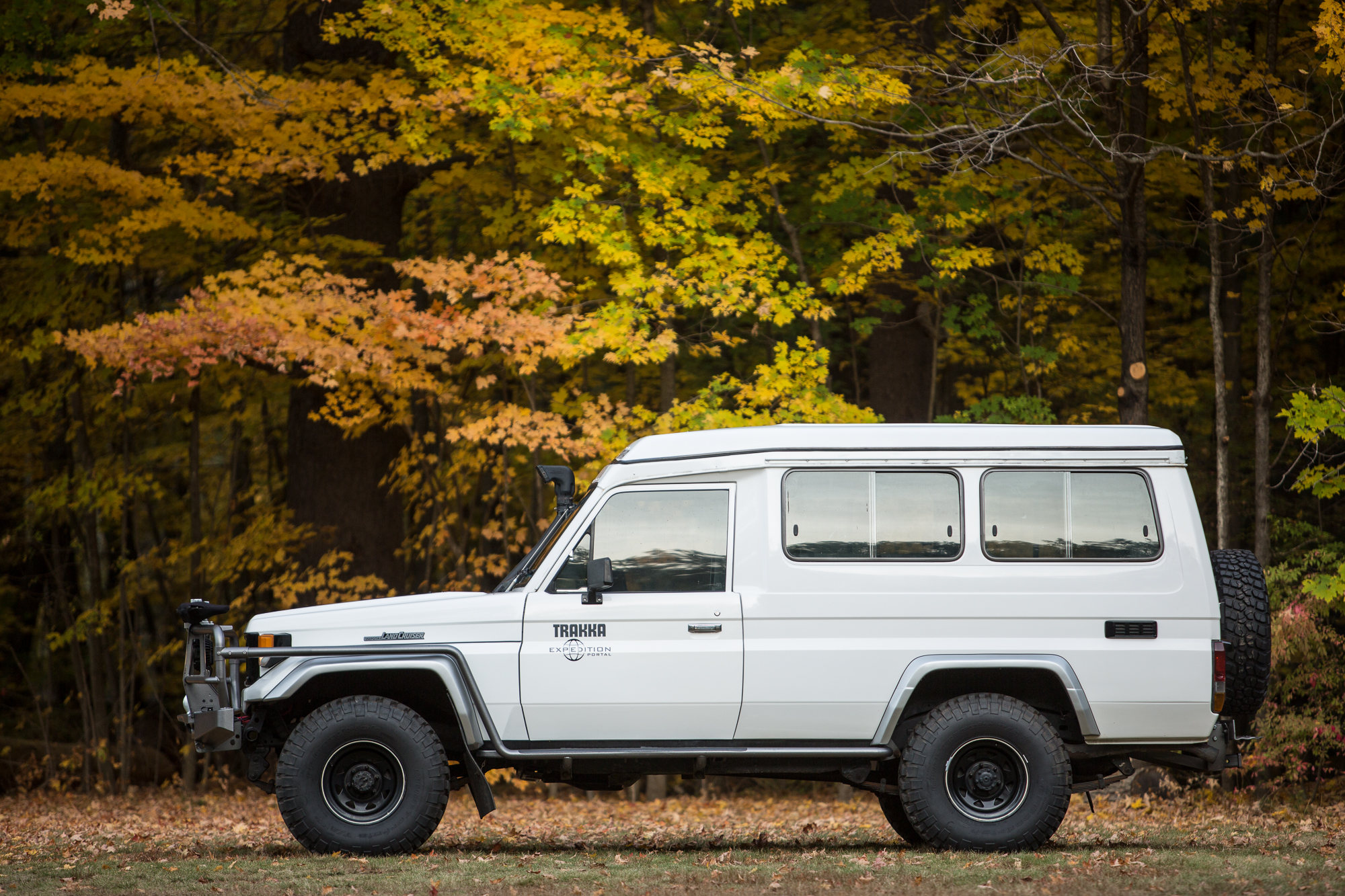

JPR_151027-4799 JPR_151027-4820 JPR_151027-4847 JPR_151027-4887  JPR_151027-4896

JPR_151027-4909JPR_151027-4903

My HJ75 is outfitted very nicely at the moment, but I do have grand plans for it in the future.  This winter I will outfit the interior with 2 rear forward facing seats (for my kids) and add slide out drawer storage and a slide out tray for my refrigerator.  I am also working with a local fabric shop to replace the canvas on the pop-top with a thicker and more weather resistant material.  Eventually, the 2H engine will be replaced with the more modern and powerful 1HD-T.

DSCF9454

So, where will my HJ75 take me?  Aside from my usual adventures in the New England area, in 2016 my HJ75 will take me to Overland Expo West, up to Newfoundland and back, and then on an extended New England trip with the Mountain State Overland folks.  More extended plans include a cross-country trip with my son, and a multi-month trip to South America.



Get out and explore!



Check out more of Jonathan’s adventures and fantastic photo galleries at the links below:

Website – Rutherfoto.com

Instagram – @rutherfoto



JPR_151027-4953



Jonathan Rutherford is a Boston based photographer and adventurist with a passion for adventure-lifestyle and portrait photography. Rutherford lives his life in close accord with the natural world where he finds endless sources for inspiration. “Wanderlust is what drives my photography. I have an insatiable appetite for discovering new environments and meeting interesting and inspiring people.” When Rutherford is not on assignment, he can be found flying small airplanes around the Northeast and spending time on his greatest adventure, fatherhood.
