Project Husqvarna TE630 Adventure Motorcycle

IMG_0922
While the big adventure bikes certainly garner attention, it is the mid-weight machines that most effectively support expedition travel. Certainly, if the majority of the trip includes paved roads, then opt for comfort and cruise control. However, if you plan to cross the BAM road, the Canning Stock Route or the Trans-America Trail, then the 600-class adventure bikes are just what the explorer ordered. In our effort to evaluate the viability of these mid-weight bikes, we have built a Honda XL650, Suzuki DR650, and now the KLR650 and Husky TE630. They absolutely have their place in the ADV hierarchy, and with a few thoughtful modifications will take you on the most difficult overland routes around the world.

In part one, we introduced the TE630 as a stock motorcycle and reviewed its specifications. For this installment, we will cover the modifications performed to the bike to address comfort, performance, durability, range, and luggage. The primary goal was to retain the dirt performance this Husqvarna is famous for, while still making it possible to camp off the 630 for weeks or months at a time. The theme is light and fast, so we toed the line with minimal weight increase and ultra-light camping equipment. The most significant weight bump comes from a full 6.6 gallons in the Safari tank. In the next installment, we will review the camping equipment used and report on how bike performs. Follow the modification details below:

IMG_0972
No different from a 4WD, dirt performance improves significantly with good tires. We installed some of the most aggressive DOT legal tires available, the Pirelli Scorpion Pro, which is a 20/80 tire and extremely effective in all but hard pack dirt. We installed the 90/90-21 front and the 140/80-18 rear.

_38C2906_38C2903

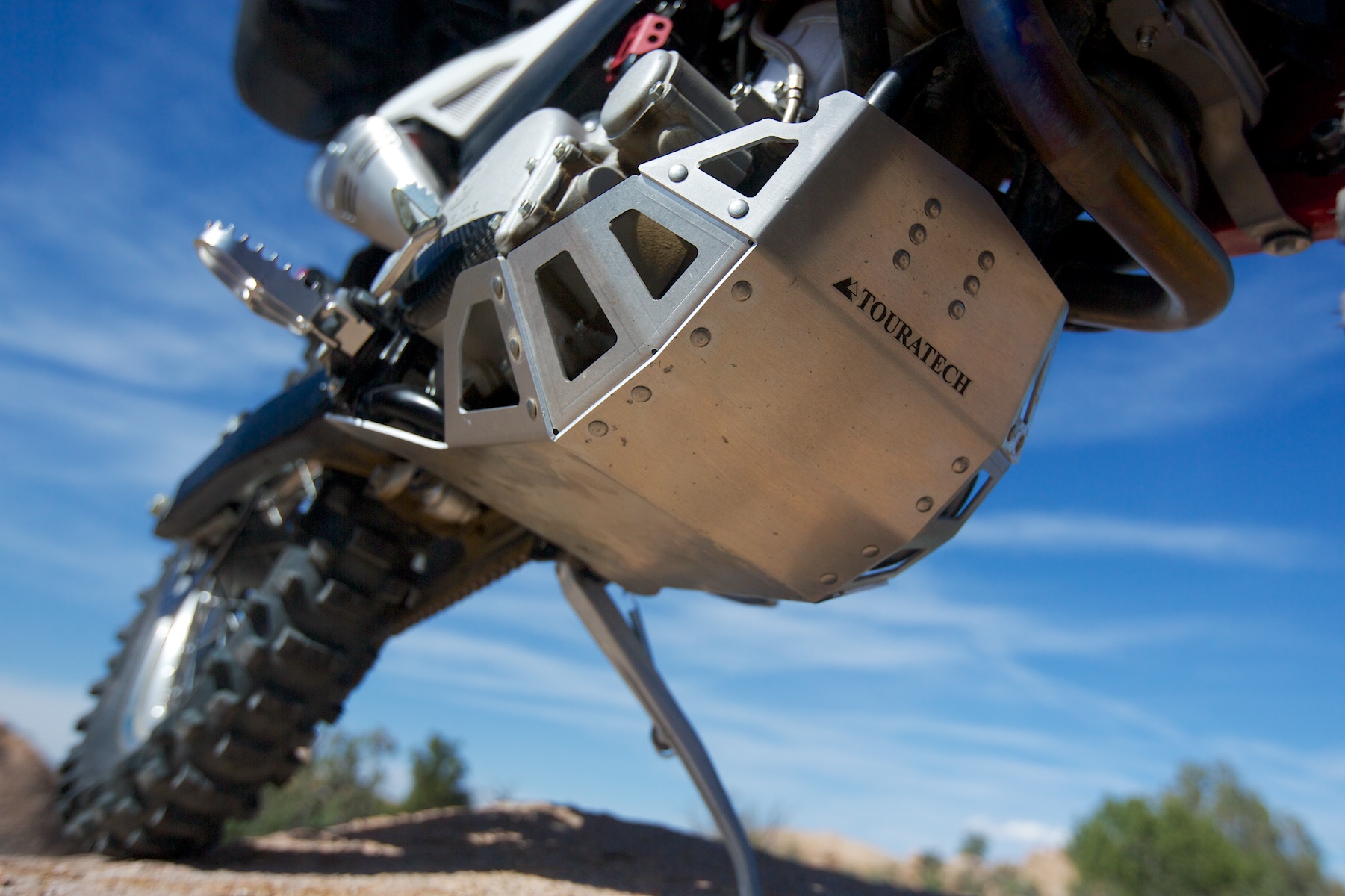

Next comes engine protection, and Touratech builds the perfect adventure travel skid plate for this motorcycle, balancing strength and light weight. The guard is made from 3mm aluminum, reinforced by 3mm stainless steel. All brackets are stainless steel as well. Touratech Aluminum Skid Plate
_38C2875
Continuing up the frame, we specified aggressive and wider foot pegs. The ergonomics of the TE630 are not well suited to taller riders, so these pegs also drop by 10mm and move back by 10mm. They are designed for the smaller Huskys, but mount to the 630 just fine, and are available from Cyco Active. Also visible is the Touratech carbon fiber clutch cover protector, which does a good job deflecting rocks and boot scuffs. Additional protection comes from the Touratech brake reservoir cover.

_38C2881IMG_0932
_38C2877IMG_0927

Next came one of the most important modifications, replacing the minuscule factory fuel tank with a serious range multiplier. There are several tanks available for the 630, but only the Safari looks right on the bike, matching the more angular lines and complimenting the European design. At 6.6 gallons, the Husky now has a 250+ mile dirt range and easily 325 miles on the pavement. Available from JustGasTanks
_38C2913

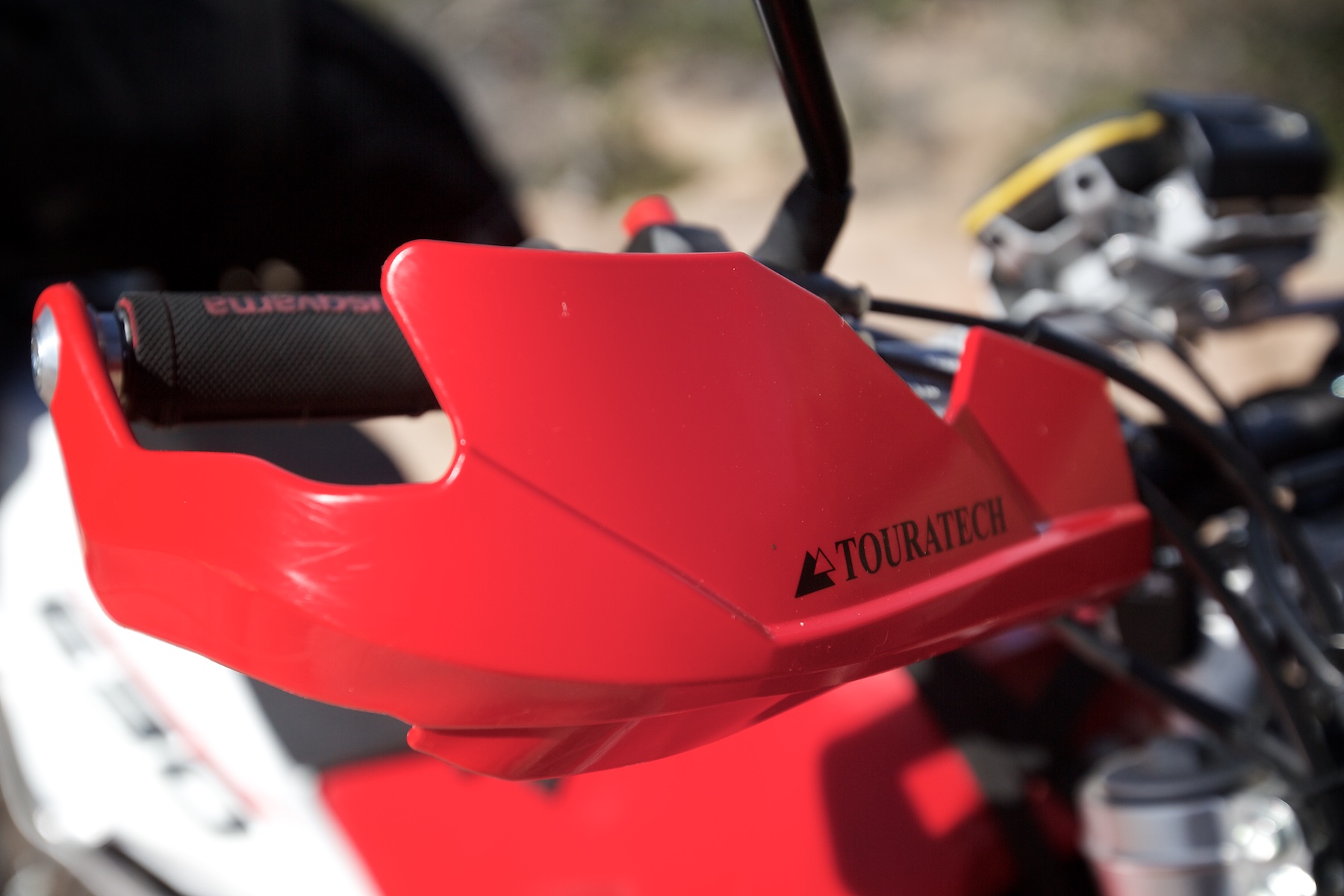

Within the cockpit, we addressed hand guards with Touratech units and also installed the excellent ASV levers, which both fold out of the way on impact and are fully adjustable. I purchased the ASV shorty units, which I find work better with my two finger riding style.
_38C2887
_38C0567
The last piece for the cockpit was the GPS unit and mount. Touratech makes a mount that works with a small aluminum cross bar. The GPS can be wired to the battery and the mount is lockable. I decided on the Garmin Montana, which simply works for this type or riding .

_38C0584_38C2885

For the rear luggage rack, we installed a high-quality unit from TCI Products. This steel unit is powder coated and Made in the USA. The wide structure provides support to the Wolfman bag and allows for multiple lashing options.
_38C0510

_38C2912

For luggage, Wolfman was the perfect fit, and we had experience abusing their bags for years, even on the Trans-America Trail. Their Boulder Beta Bag is ideal for the Husky, as it mounts easily to the TCI rack and allows for all of the camping equipment, tools and (most) spares to fit in one piece of luggage. On light/fast trips, my personal effects are essentially nothing. A few extra pairs of underwear, socks and t-shirts. Maybe a pair of flip flops if I am feeling like glamping. . . (grin).
_38C2954
In addition to the Boulder Beta Bag, I installed two smaller bags for storing everything else. On the tank we strapped a Wolfman Enduro Pocket, which holds numerous essentials like a flashlight, multi-tool, small camera and sunscreen. It is small, but stays completely out of the way. On the front fender I mounted the Enduro Fender Bag, which contains a tube, a few patches, and a set of tire irons.

_38C2876_38C2883

Final modifications included a Kush rear sprocket and a 14-tooth front sprocket for greater control in the dirt with a travel load. For better standing ergonomics, I installed a Rox 1 1/4″ bar riser set. With that, our Husqvarna TE630 project is essentially complete and ready for some serious dirt.

Before:
CL_ExPo_JK 13 - Version 2
After!!!: _38C2931
So fun. . .
