Icon Leveling Lift Kit for Ford Bronco

Lifting the body of a vehicle is often achieved by installing a suspension upgrade, which is more often than not a costly exercise.

Leveling Kit

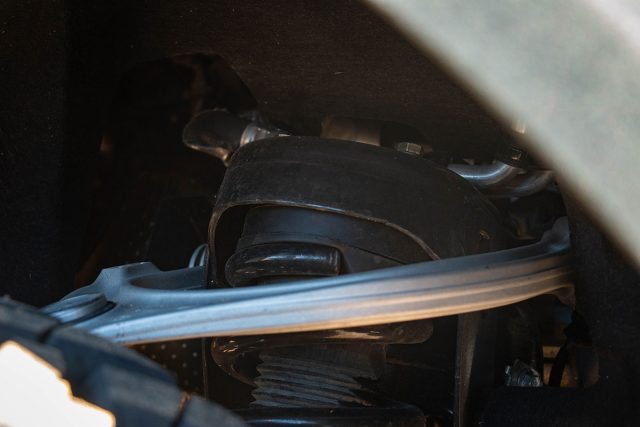

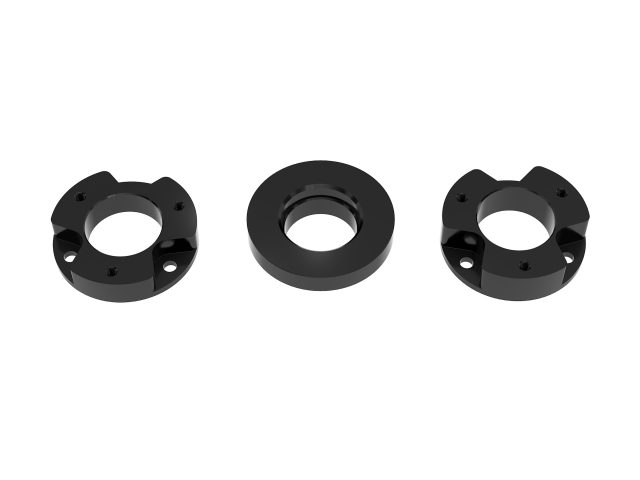

The Icon Leveling Lift Kit for 2021 and newer Ford Broncos provides an easy to install, economical, and performance-enhancing method of gaining the necessary clearance to run larger tires. The kit consists of CNC-machined 6061 billet aluminum top spacers and preload adjusters to yield approximately 3 inches of front suspension lift and 2 inches of rear lift to level the vehicle’s stance. The result is full articulation, full steering range, no-rub fitment for up to 35-inch tires on non-Sasquatch-equipped Broncos or up to 37-inch tires if Sasquatch-equipped.

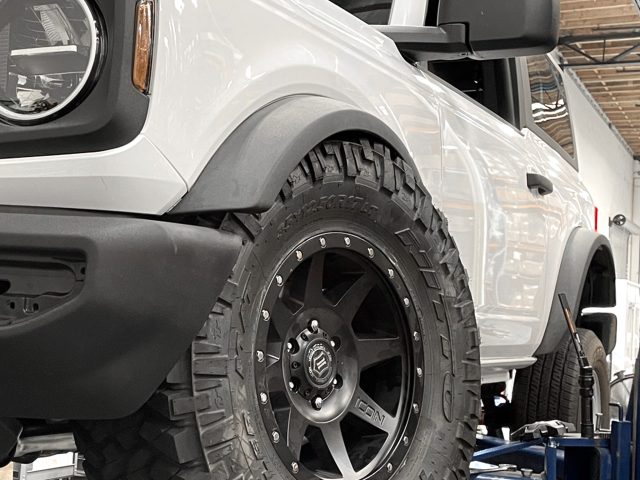

ICON engineers have dialed in the dimensions to tuck the tires cleanly into the OE fender flares at full bump (up travel) when using either factory Sasquatch wheels or 17- by 8.5-inch, 25-millimeter offset wheels such as the Icon Rebound Pro. The components are relatively easy to install without disassembling the shock itself (a spring compressor is required for installation on some models). The leveling kit is designed to help you get the most travel and articulation possible out of your factory control arms, without ball joint bind or over-extension.

Key features:

  • Fits up to 35-inch tires (37-inch on Sasquatch-equipped) for increased ground clearance
  • Maximum articulation and full steering range with no tire rub
  • Does not require disassembly of the shock for installation
  • CNC machined 6061 billet aluminum with anodized finish
  • Oversized tires clear stock flares at full bump with 25-millimeter offset wheel
  • Maximum travel from OE suspension without ball joint bind or overextension
  • Covered by Icon’s limited lifetime warranty

Visit www.iconvehicledynamics.com
