The Best Deal You’ll See On A 2016 EarthCruiser

There are plenty of seriously cool mega-overlanders out there these days: Global Expedition Vehicles, Acela trucks, and, of course, EarthRoamers will make any four-wheel-drive enthusiast’s heart beat a little faster. But when it comes to traveling, there’s one vehicle I would take above the rest, and that’s the EarthCruiser. While their Fuso-based expedition trucks may lack the interior luster of some other brands, they are perfectly sized to fit in a container for secure shipping around the world and can park easily in a standard spot in front of your favorite brewery downtown. They have a turning radius that rivals some sedans, are short enough to be allowed into every national park, and basically manage to deliver a big truck living space in a small truck package. The only catch? New EarthCruisers are listing from $270,000 to $400,000, and that’s a large chunk of change. But right now, you can pick one up for less than $200,000 on the Expedition Portal Forum, and it comes with everything you need to leave tomorrow. Let’s take a look.

This particular FX model is a 2016 and has 73,000 miles on the clock. The current owner bought the vehicle for a two-year “bucket list” trip around North America and is now moving back to his home base in Thailand. They note that this is a “turn-key sale” and the buyer won’t need to do a thing but hit the road. Based on the included list, I would have to agree. Everything from recovery gear to cutlery is taken care of.

“If it’s not on the itemized list below I never needed it in over two years and 50,000 miles of cruising. Start the motor and Voyager 3 is set up, ready and able to carry you anywhere in the world on your own ultimate adventure. Voyager 3 is in excellent condition with nearly every available factory option and a full set of service records, and is still under Fuso’s factory warranty.”

The Basics

Year: 2016

Make: EarthCruiser

Base Chassis: Fuso FG 4×4

Miles: 72,000 miles

Price: $195,000 USD

Contact details: View them by clicking the link at the bottom of the page

The Details

  • WHEEL/TIRES: EarthCruiser‑spec alloy wheel with off‑road tires (single rear fitment), additional, spare
  • 4 new Toyo A/T II Open Country tires: LT 315/75 R16, 127/124R 10 P.R. (common size tires available worldwide)
  • Bottle jack 12 ton, hydraulic, air/manual operated, w/mount
  • Nut Buddy, lug nut removal assistance tool, includes 33mm socket
  • Jack platform
  • SUSPENSION: EarthCruiser specs leaf springs/shock-absorbers/greaseable shackles, long travel, soft ride suspension system, upgraded shocks
  • TRACK WIDTH: Front and rear axle, the same when fitted w/wheel conversion
  • WHEEL BASE: 134”/3403mm
  • OVERALL LENGTH: 21.4’ 257”/6527mm (Allowed into all U.S. national parks because it is under 24’ length limit.)
  • OVERALL HEIGHT: 9’11”, 119”/3022.6mm
  • OVERALL WIDTH: 6’9”, 81”/2057mm
  • WET WEIGHT (approx.): 12,000 lbs, 5443 kg
  • FUEL TANK: 61G 231L, mpg range 11.3 – 12, approx. range: 689 – 732 miles
  • Battery: 2x 270 amp/hr AGM

  • Heated and cooled seats w/adjustable lumbar
  • Center console w/cup holders and large storage area
  • Combination safe below the center console
  • Heavy‑duty alloy bull bar (front vehicle protection) w/steel enforcement – 2x front recovery points, LED turn signals
  • 16,500-pound Warn winch
  • Radiator protector, skid plate
  • Brush Guard (front vehicle protection) w/roof rack, protects cab/windshield/adds cab roof storage
  • High‑capacity tow bar (rear vehicle protection) including recessed tail lamps, Class IV hitch receiver
  • Spare wheel/tire carrier, tilting, locking
  • Spare tire cover w/rubbish bag
  • 12V accessory socket (cigarette‑lighter type)
  • 2x USB power sockets
  • Quick-release bellows (crawl through, for tilt cab, service and maintenance)
  • Back‑up camera
  • Front-wheel arch flares
  • LED under cab work light, switched
  • Premium sound system, Kenwood model #DMX905s
  • Premium speakers
  • Sound deadening in the cab
  • WeBoost internet signal booster
  • Mast steps
  • LED side turning lights
  • Wheel chock
  • External dipstick
  • New set of brake pads
  • Mudflaps, heavy-duty
  • New tires
  • AC/DC converter

Body Construction

  • Camper chassis mounted to vehicle chassis w/EarthCruiser kinetic mount system
  • Domed molded structural foam insulated roof
  • Molded structurally insulated fiberglass walls and floors, 1”/2.5mm thickness
  • Molded structurally‑insulated fiberglass entry door w/deadbolt lock, incl. window W 19.7”/500m, H 11.8”/300mm
  • Molded structurally‑insulated fiberglass locker box doors w/2 compression locks w/key
  • 5x Side windows (casement‑type, incl. privacy and insect screens) W 35.5”/900mm, H 15.75”/400mm

Exterior Features

  • Electrically‑operated entry stairs
  • Locks & latches – flushed or recessed
  • Electrically‑operated awnings, recessed into the roof
  • External hot/cold shower, 70.8”/1800mm hose, 1.77G/6.7L per min.
  • External purified drinking water faucet
  • External water faucet (locked and sealed)
  • Body side skirts, rear wheel arch flares, toolboxes
  • Air compressor with a tank, hose Schrader chuck
  • ELECTRICAL – BATTERY SYSTEM / SOLAR CHARGING SYSTEM (12V)
  • 3x 270 Amp-hr 12V AGM house batteries (Total 810 Amp-hr)
  • Fuso FG factory vehicle start batteries incorporated into the electrical system
  • 3x 125W solar panels: 375 W total (shatterproof, recessed into the roof)
  • Standard solar control/mounting system
  • Inverter, Magnum 2012-20B – 2000W, pure sine wave – 110V
  • Shore power hook‑up receptacle plug adapter
  • 110V power outlet – duplex, GFCI (rear locker area)
  • Accessory power – Anderson plug, 10 amp (rear locker area)

Storage

  • Locker box left-hand side
  • Locker box right-hand side
  • Toolbox left-hand side
  • Toolbox right-hand side
  • Pull‑out pantry
  • 4x Under cooktop storage drawers
  • 4x Under sink top storage drawers
  • Interior drawers – anti‑rattle w/positive locking catches
  • 2x Under bed storage drawer – 23.6” x 15.7” x 7.8” (584 x 381 x 195 mm)
  • 2x Under bed storage drawer – 22.5” x 15.5” x 4.5” (558 x 381 x 178 mm)
  • Under-bed storage – fit drawers, fit custom luggage, w/latched door 22’ x 25’ x 7” bottom; 22” x 15” x 7” top
  • Rear locker storage (total) Approx. 42” W x 18” H
  • Pass‑through storage for long items

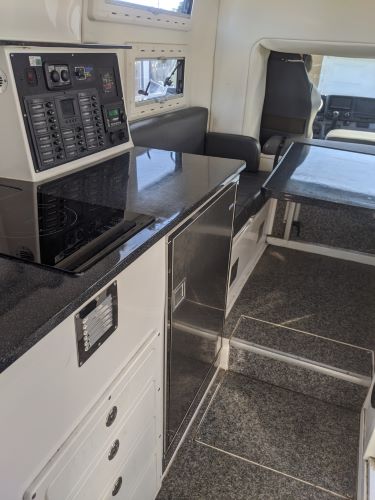

Interior

  • Command panel, main system controls
  • Fixed, full-size bed (queen‑size) w/marine‑grade foam mattress (semi‑firm)
  • Easy clean fiberglass surfaces throughout the interior
  • 4-person dinette bench seats w/under‑seat storage, molded fiberglass, converts into second bed w/cushions
  • Dinette seat cushions, gray leather
  • Swing‑away dinette table, converts into second bed
  • Bedside cabinet, five drawers
  • Air conditioner (DC)
  • 3x 110V power outlets, duplex GFCI
  • 2x 12V accessory socket (cigarette-lighter type)
  • 6x USB power sockets
  • Isotherm 12V DC refrigerator/freezer 130L/4.24 cu ft, upright, stainless steel (works out of level)
  • Ceramic Webasto cooktop (uses diesel fuel from the vehicle fuel tank) w/altitude adjustment, 102 BTUs per minute, 3-6 fl ounces per hour
  • Webasto Dual Top hot air and water heater, 200 cubic meter/7062 cubic feet/hour air and 2.9G/11L hot water @ 158F/70C ambient temp. 5.5KW total heating capacity, hot water tank priority as required (6.42-22.3 fl ounces, 200-650mm per hour)
  • Ducted warm air, drying room
  • Molded countertop with dual sinks
  • Kitchen faucet, hot/cold mixer
  • Purified water tap
  • Synthetic cutting board, fits over the sink
  • Digital clock/outside temp gauge
  • 2x fans recessed into the ceiling
  • 4×6.5-inch coaxial speakers, marine‑type, ceiling mounted
  • Plumbing, internally routed, insulated where applicable
  • Rubbish bin, sealed, recessed, removable w/lid
  • Full‑height shower
  • Shower curtain, retractable
  • Showerhead/sink faucet, hot/cold mixer, 1.77G/6.7L per minute
  • Interior headroom 6’7”, 2006.6mm
  • Top of the mattress to ceiling 44”/117.6mm
  • Bedside cabinet
  • Internal area 92s square feet
  • Thetford cassette toilet #C402 (recessed when not in use) – 3.96G/15L, top flush 4.49G/17L waste capacity
  • High‑flow Whale freshwater pump, water system control/transfer console (interior mounted)
  • Hot water cycling system
  • 2x Freshwater tank, main tank 43.5G/165L & 25G/94.6L
  • Secondary tank 25G/94.6L w/heater, both interior mounted w/level sender
  • Freshwater tank heater (exterior-mounted)
  • Freshwater level monitoring (main control panel)
  • Grey Water
  • Greywater tank, 20G/54.5L (exterior-mounted) w/level sender
  • Greywater tank heater
  • Greywater level monitoring (main control panel)

Accessories and Living Supplies

  • Full set cookware, cooking utensils, flatware, plates, bowls, insulated mugs
  • Electric water kettle
  • Toaster oven
  • Rice cooker
  • French press for coffee
  • Seal-tight coffee container
  • Cast iron frying pan
  • 1-quart pot w/lid
  • Large wok w/lid
  • Measuring cups
  • Serving tray
  • Outdoor stuff
  • Eureka 13″inch round tabletop butane BBQ
  • Propane camp cooker
  • Outdoor cooking utensils
  • Bicycle rack, heavy duty for carrying E-bike
  • Optional for sale: E-bike -Specialized Turbo S w/cove
  • Cutters Deep Woods bug spray
  • Fly swatter
  • Insects screen in the doorway
  • Collapsible bucket and basket
  • Hammock
  • Cast iron firewood poker
  • Gravity chair
  • 2 folding chairs
  • Folding table
  • 3 Front Runner stackable storage boxes
  • 2 stackable milk crates

Tools

  • Full set hand tools
  • Level
  • Flashlights
  • Battery tester
  • Cleaning fluids
  • Saw
  • Shovel
  • Entrenching tool
  • 4 sets of leveling blocks
  • Heavy-duty 50-foot extension cord with a 30-amp adapter with pigtail connector for shore power
  • 50-foot garden hose
  • Extra end‑of‑hose inline water filter
  • Tie wraps
  • Bungees

Recovery Gear

  • winch
  • snatch strap
  • Tire repair kit
  • Air compressor, both sides
  • jump starter
  • battery starter
  • hand tools
  • work gloves
  • traction tracks
  • jack base
  • tree saver
  • soft connect shackle
  • snatch block

Learn more or contact the owner by viewing the original advertisement HERE.
